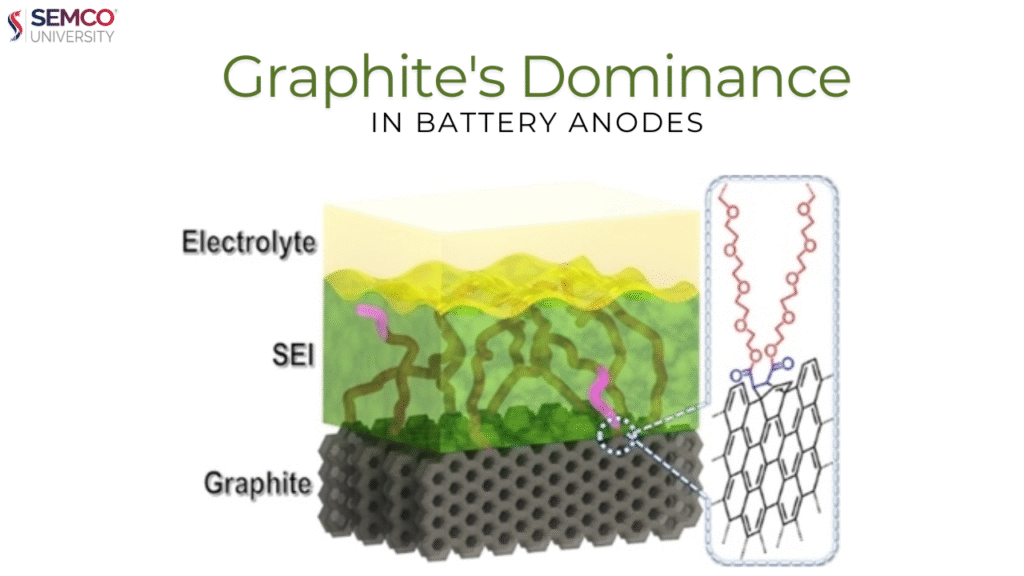

In the realm of lithium-ion batteries, the negative electrode, or anode, plays a crucial role in storing and releasing lithium ions during the charging and discharging cycles. While various materials are being explored, graphite, in its natural and synthetic forms, reigns supreme, commanding the lion’s share of the market. This article delves into the characteristics, production, and comparative aspects of natural and artificial graphite, the workhorses of the lithium-ion battery anode.
1. Natural Graphite: Earth’s Crystalline Storehouse
Chemical Composition: Natural graphite is elemental carbon (C) that has crystallized under immense geological pressure and temperature within the Earth’s crust. It is typically found embedded in various ores, including graphite schist, graphite gneiss, graphite-containing schist, and metamorphic shale. While its fundamental composition is carbon, naturally occurring graphite is rarely found in its purest form and often contains a variety of mineral impurities.
Physical Properties: Natural graphite minerals exhibit a distinctive iron-black to steel-gray color, leaving a lustrous black streak when rubbed against a surface. It possesses a metallic sheen, although cryptocrystalline aggregates (finely divided crystals) appear dull and opaque. A characteristic greasy feel and the tendency to easily smudge fingers are also notable physical properties.
Crystal Form: Graphite belongs to the complex hexagonal bipyramid crystal system, often manifesting as hexagonal plate-like crystals. Common crystal forms include parallelepipeds, hexagonal bipyramids, and hexagonal columns, although well-formed individual crystals are relatively rare. It typically occurs in scaly or plate-like aggregates, or as dense blocks, earthy masses, or spherical nodules.
Main Uses: The exceptional thermal conductivity, electrical conductivity, and chemical stability of natural graphite make it a versatile material with a wide array of applications beyond batteries. It is extensively used in the production of high-temperature metal smelting crucibles and refractory materials that can withstand extreme heat. Its electrical conductivity makes it ideal for electrodes, brushes in electric motors, and carbon rods. In a more familiar application, it forms the core of pencil leads. Its lubricating properties are harnessed in various lubricants and sealing materials. Of course, it is also a key component in numerous battery technologies.
Resource Distribution: Globally, China stands as the dominant producer of natural graphite, boasting substantial reserves and a comprehensive graphite industry infrastructure. According to available data, the world’s estimated natural graphite reserves amount to approximately 2 billion tons, with crystalline graphite accounting for around 800 million tons. Notably, China holds the largest share of these global natural graphite reserves.
2. Artificial Graphite: Engineered Carbon Structures
Definition: Artificial graphite, also an allotrope (a different structural form) of carbon, is a synthetic material produced through high-temperature treatment of carbon-rich precursor materials. It is a gray-black, opaque solid characterized by its stable chemical properties and corrosion resistance. It exhibits a high degree of inertness, showing little reactivity with acids, alkalis, and many other chemical agents.
Main Raw Materials: The production of artificial graphite relies on a variety of carbonaceous raw materials, including petroleum coke, needle coke, asphalt coke, coal tar pitch, and carbon microspheres. Needle coke, a highly ordered form of petroleum coke, is typically preferred as the precursor for negative electrode materials requiring high specific capacity. In contrast, the more cost-effective petroleum coke is often used for negative electrodes with standard specific capacity requirements.
Manufacturing Process: The creation of artificial graphite involves a multi-stage process:
- Pretreatment: The chosen graphite raw material is mixed with asphalt in varying proportions to achieve the desired properties. This mixture then undergoes air jet milling, a process that grinds the material to the precise particle size required for subsequent steps.
- Granulation: The finely ground material is then subjected to pyrolysis, a thermal decomposition process in the absence of oxygen, followed by ball milling and screening. These steps ensure that the material achieves the specific particle size distribution necessary for optimal battery performance.
- Graphitization: The granulated material undergoes a crucial high-temperature treatment known as graphitization. This process, often conducted in specialized furnaces, transforms the disordered carbon structure into the highly ordered crystalline structure of graphite. Outsourcing of this energy-intensive step is a common practice.
- Screening and Packaging: Finally, the graphitized materials are meticulously screened to isolate graphite products that meet stringent quality specifications regarding particle size and purity. These finished products then undergo thorough inspection, measurement, and packaging for distribution.
Environmental Impact: The production of artificial graphite is not without its environmental footprint. The manufacturing process can generate significant amounts of waste gas and wastewater that pose environmental hazards. Waste gas pollution is particularly concerning, primarily stemming from the calcination of petroleum coke and the melting and roasting of asphalt. Furthermore, the production of the raw materials themselves is energy-intensive, requiring substantial amounts of crude oil and other fossil fuels.
3. Natural Graphite vs. Artificial Graphite: A Comparative Overview
4. Leading Enterprises in Lithium Battery Negative Electrode Materials
The negative electrode material industry exhibits a relatively high degree of concentration, with a few key players holding significant market share. Notably, leading enterprises are increasingly prioritizing the research, development, and production of innovative new negative electrode materials to meet the evolving demands of the battery market. Second-tier companies often focus on the production of artificial graphite, and their market share is steadily increasing. For instance, B&T has consistently held the top position in the global market share of negative electrode materials for an extended period, demonstrating the dominance of established players in this critical component of lithium-ion batteries.
Conclusion:
Both natural and artificial graphite play indispensable roles in the lithium-ion battery landscape. Natural graphite, readily available and relatively cost-effective, provides a significant portion of the anode material. However, the increasing demand for higher-performance batteries, particularly in electric vehicles and advanced electronics, is driving the growth and innovation in artificial graphite production.
Its tailored properties, such as higher purity, controlled morphology, and enhanced cycle life and rate capability, make it a preferred choice for demanding applications. As the lithium-ion battery market continues its exponential growth, the ongoing advancements in both natural graphite processing and artificial graphite synthesis will be crucial in ensuring a stable and high-performing supply of anode materials for the future of energy storage.
