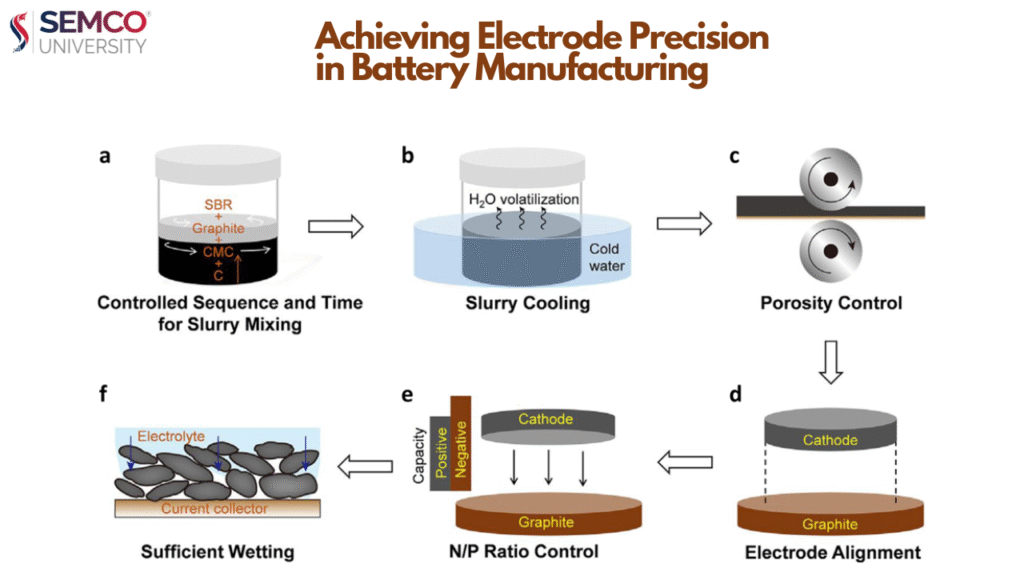

In the high-stakes arena of lithium battery production, the consistency of electrode surface density during the coating process is a non-negotiable factor directly impacting the uniformity of battery cell capacity. Even minor fluctuations in surface density can lead to significant variations between cells within a battery pack, a critical issue that can trigger costly returns and damage the reputation of manufacturers. Industry giants like CATL and Panasonic have long recognized this, and their expertise offers invaluable insights. This article unveils ten core parameter adjustment strategies for meticulously controlling coating surface density, providing a direct roadmap for improving production yields and addressing a key pain point in battery manufacturing.
1. Unmasking the Trio of Density Disruption
Fluctuations in coating surface density rarely arise from a single cause. Instead, they are often the result of a confluence of factors:
- Unstable Slurry Behavior (35% Influence): The flow properties of the coating slurry are paramount. If the viscosity changes by even a small margin, it can lead to uneven distribution of the slurry at the coating blade. A critical indicator to monitor is the viscosity at a specific shear rate, a parameter that leading manufacturers maintain within a tight range for optimal coating.
- Inconsistent Substrate Tension (28% Influence): Variations in the tension of the thin metal foil (copper or aluminum) as it moves through the coating line can cause it to deviate laterally, resulting in inconsistent coating widths. Maintaining stable foil tension is crucial for uniform coating.
- Mechanical Imperfections in Equipment (20% Influence): Often unseen, wear on critical components like the coating die and inaccuracies in the backing roller can significantly impact coating uniformity. Replacing worn parts can lead to substantial improvements in density consistency.
2. The TOP 10 Solutions for Precision Coating
Here are ten key process parameter adjustment strategies, gleaned from industry best practices, to tackle the challenges of coating surface density control:
Solution 1: Real-Time Slurry Control with Dynamic Compensation:
- Implement online viscosity monitoring to track the slurry’s flow properties continuously.
- Establish automated adjustments to the stirring speed or controlled additions of solvent when viscosity deviates beyond a defined threshold.
- Impact: This technology has been proven to significantly reduce surface density fluctuations, leading to greater cell consistency.
Solution 2: Targeted Temperature Management at the Coating Die:
- Maintain a slightly higher temperature at the edges of the coating die compared to the center.
- Ensure precise temperature control across the die face.
- Impact: This counteracts heat loss at the edges, mitigating the “edge thickening” phenomenon and improving coating width uniformity.
Solution 3: Closed-Loop System for Consistent Substrate Tension:
- Integrate high-accuracy tension sensors to continuously measure the foil tension.
- Employ a rapid-response deviation correction system for the foil, driven by a precise control algorithm.
- Impact: This system ensures the foil moves consistently through the coating process, minimizing deviations in coating width.
Solution 4: Optimizing the Backing Roller’s Surface Finish:
- Reduce the surface roughness of the backing roller’s coating.
- Implement a regular schedule for checking the roller’s roundness to identify and address any mechanical runout.
- Impact: A smoother, more precise backing roller minimizes surface defects in the coating and contributes to greater density uniformity.
Solution 5: Dynamic Scraper Pressure Algorithm:
- Implement a formula-based approach to calculate and control the scraper pressure, taking into account key factors like slurry viscosity, coating speed, the gap between the scraper and the backing roller, and the scraper material.
- Establish recommended scraper pressure ranges for different slurry types.
- Impact: This ensures the optimal and consistent application of the slurry onto the substrate.
Solution 6: Harmonizing Coating Speed and Drying Temperature:
- Establish a “golden curve” that defines the optimal drying temperature profile based on the coating speed.
- Implement proportional adjustments to the drying temperature as the coating speed changes.
- Impact: This prevents issues like the coating being dry on the surface but still wet inside, ensuring consistent drying and density.
Solution 7: Innovative Slurry Delivery System to Prevent Settling:
- Modify the slurry conveying pipes with internal spiral guide grooves.
- Install ultrasonic oscillators along the pipeline.
- Impact: These design changes significantly reduce the rate at which solid particles in the slurry settle, ensuring a more homogeneous material is delivered to the coating head.
Solution 8: Standardized Automatic Die Cleaning Protocol:
- Implement an immediate flushing procedure with solvent after each production run.
- Establish a regular schedule for disassembling and thoroughly cleaning the die head using advanced cleaning technology to remove any hardened residue.
- Impact: This prevents blockages and ensures consistent slurry flow and coating quality.
Solution 9: Precise Environmental Humidity Control:
- Implement a system that activates dehumidifiers when the workshop humidity exceeds a defined threshold.
- Maintain a positive air pressure within the coating workshop.
- Impact: Controlling humidity prevents moisture absorption by the electrode materials and helps to keep the environment clean and free of contaminants.
Solution 10: Artificial Intelligence for Real-Time Visual Monitoring:
- Install high-resolution cameras to capture images of the coating edge.
- Employ a deep learning model to analyze these images in real-time, identifying defects and providing feedback for parameter adjustments.
- Impact: This enables immediate detection and correction of coating irregularities, minimizing scrap and improving overall quality.
3. Real-World Success: Achieving Ultra-Tight Tolerance
One power battery company struggled with surface density fluctuations that consistently exceeded acceptable limits, leading to a high rate of customer complaints. By implementing a combination of real-time slurry control, closed-loop substrate tension management, and AI-powered visual monitoring, they created a triple-control system. Furthermore, they significantly tightened the tolerance of the coating die head gap using advanced machining. The result was a substantial improvement in surface density consistency and a significant increase in annual profit.
4. Industry Leading Performance
- Top-Tier Manufacturers: Achieve surface density fluctuations well below 0.5% by employing advanced die processing techniques and AI-driven dynamic compensation algorithms, along with fully closed-loop tension control and sophisticated humidity management.
- Second-Tier Manufacturers: Often experience significantly higher surface density fluctuations due to reliance on manual adjustments and basic control systems.
5. The Devil is in the Details: Winning the ±1% Battle
Controlling coating surface density is a delicate balance between achieving ultimate precision and managing production costs. The fine-tuning of every parameter, from the behavior of the slurry to the design of the coating die, can have a significant financial impact. The ten solutions outlined here, validated by leading companies, offer a practical guide for engineers to implement data-driven improvements on their production lines. Mastering these details is the key to unlocking higher yields, reducing costly returns, and ultimately winning the competitive battle in the lithium battery industry.
