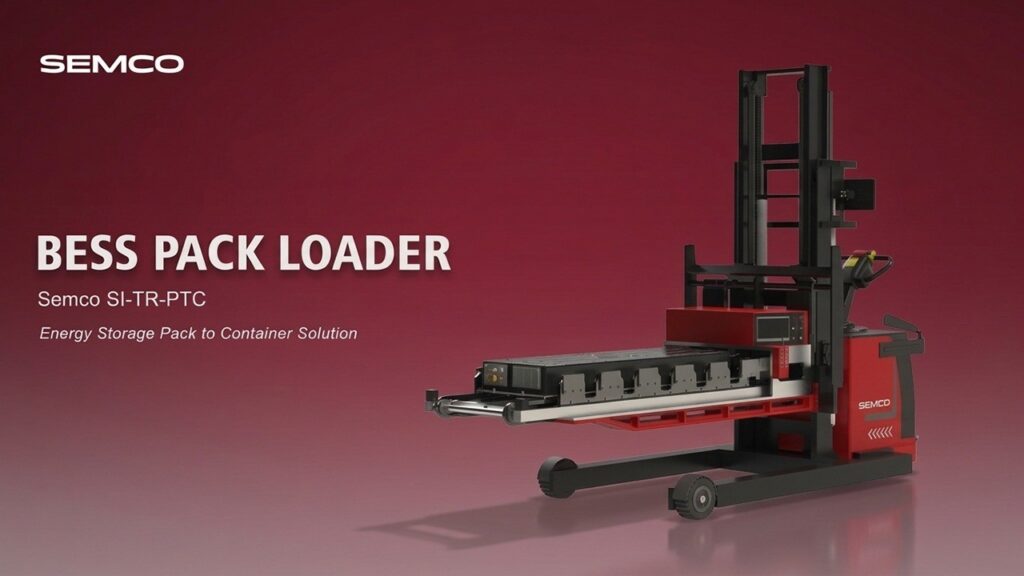

As containerized BESS installations scale in size and voltage, moving fully built battery packs into cabinets becomes a critical safety and productivity challenge. The Semco SI‑TR‑PTC BESS Pack Loader has been engineered specifically for this application, enabling manual cabinet entry of packs via remote control while maintaining high alignment accuracy, operator safety, and predictable throughput.
The system is optimized for typical containerized BESS pack sizes around 2120 mm × 775 mm × 260 mm with pack weights in the 700–1000 kg range, making it ideal for modern lithium‑ion energy storage projects. By combining an Pack Loading System, precision motion control, thrust sensing, and camera‑based remote operation, Semco delivers a robust solution tailored to energy storage integrators and OEMs.
Application and Working Concept
The Semco SI‑TR‑PTC is an integrated vehicle that takes over the complete movement of the BESS pack from staging area to final position inside the cabinet.
Key application roles:
- Pack transfer: Moving the pack from cache bracket or staging rack to the front of the energy storage cabinet.
- Docking and alignment: Bringing the pack into precise position with respect to the cabinet rails or supports using multi‑axis adjustments.
- Handover for lifting systems: Preparing and positioning the pack so that an overhead crane, aerial crane, or cantilever crane can safely lift or slide it into the final slot.
The pack loader supports manual walk‑along control as well as full remote control, allowing the operator to stand at a safe distance while watching a live camera feed during high‑risk maneuvers such as cabinet docking and insertion.
Design and Equipment Details
The Semco BESS Pack Loader is built as a heavy‑duty electric stacker platform with integrated battery, multi‑axis motion, and safety systems.
Core mechanical and electrical characteristics:
- Vehicle dead weight: Approx. 2000–2500 kg including onboard battery (final value subject to detailed design).
- Pack handling capacity: Battery pack weight range up to ≤1000 kg, aligned with typical containerized BESS modules.
- Cabinet compatibility: Allowable battery cabinet height range from 350 mm to 3000 mm, covering low‑bay to tall cabinet configurations.
- Onboard power: Integrated lithium iron phosphate battery pack rated at 24 V / 250 Ah, delivering 4–6 hours of operation per full charge under normal working conditions.
Multi‑axis motion and actuation:
- Lifting: Vertical lift stroke of 2200 mm, enabling pack elevation from ground or cache brackets into cabinet height.
- Horizontal travel: Overall stroke travel of 3000 mm, with additional lateral stroke of ±70 mm for fine side‑to‑side adjustment.
- Pitch and angle adjustment: Pitch adjustment range of 0–5°, left‑right angle adjustment up to ±2°, and horizontal angle adjustment up to ±3° to correct misalignments between vehicle and cabinet.
- Forward/backward: Controlled forward/backward pitching, pushing and pulling actions for precise docking and pack insertion.
- Clamping: Mechanism for clamping and loosening the pack to stabilize it during movement and while transferring load into the cabinet.
The push rod is equipped with a thrust sensor that provides overload detection; when excessive load is detected, the system triggers an alarm and automatically stops movement to protect both the pack and the equipment. A camera mounted above the vehicle feeds to a display system, supporting precise remote operation even when visibility at the cabinet face is limited.
Performance and Operating Parameters
It is tuned to deliver a balance of safety, control, and productivity suited to industrial BESS assembly environments.
Key machine specifications:
- Product model: Semco SI‑TR‑PTC, designed for battery pack applications.
- Travel mode: Manual or remote control, switchable based on operating scenario.
- Rated load: 1000 kg, matching high‑capacity BESS pack requirements.
- Drive configuration: Single steering‑wheel electric drive with one drive unit, equipped with electromagnetic service brake for reliable stopping.
- Wheel material: Rubber/polyurethane wheels for a combination of traction, vibration damping, and floor protection.
Safety, Ergonomics, and Operational Benefits
The BESS Pack Loader emphasizes operator safety, pack protection, and alignment accuracy—three critical aspects for high‑energy systems.
Safety and pack protection features:
- Thrust‑sensor‑based overload alarm with automatic stop, preventing structural damage to packs, cabinets, or the loader.
- Electromagnetic service brake for reliable stopping in confined or populated shop‑floor environments.
- Remote operation with camera feed, allowing operators to maintain safe distance from high‑voltage equipment while still achieving precise control.
For energy storage manufacturers and integrators, adopting such a dedicated BESS Pack Loader helps standardize the pack‑to‑cabinet loading process, reduce dependency on improvised material‑handling methods, and improve both safety compliance and installation cycle time.
Backed by Semco Infratech’s System Expertise
Semco Infratech is India’s leading provider of advanced battery assembly and testing solutions, covering cell, module, and pack manufacturing as well as high‑voltage and containerized BESS testing systems. With decades of engineering experience in lithium‑ion technology and turnkey line integration, Semco designs equipment like the SI‑TR‑PTC Pack Loader to seamlessly fit into broader manufacturing and field‑deployment workflows.
Contact Semco Infratech to discuss your BESS manufacturing requirements and discover how automatic assembly solutions can enhance your production efficiency, ensure product quality, and accelerate your path to market competitiveness.
